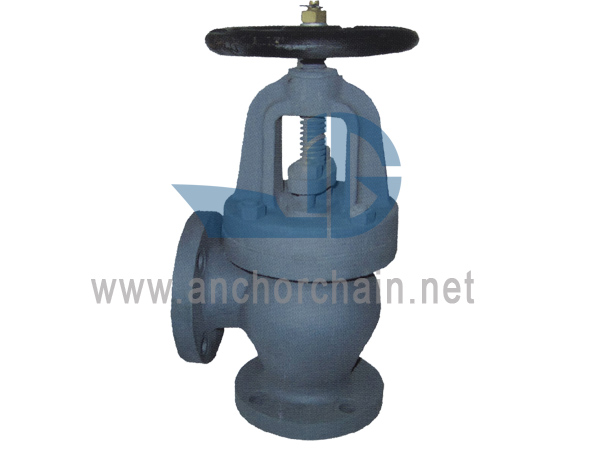

JIS F 7376 Cast Iron 10K Screw-Down Check Angle Valves:
Marine Cast Steel Screw Down Check Angle Valve uga bisa diarani Marine Cast Steel Angle SDNR Valve utawa SDNR Angle Valve. Cocog kanggo sistem pipa kanthi banyu seger, hawa & gas liyane, lenga lan uap kanthi suhu ora luwih saka 300 derajat celcius.
Standar Desain: JIS F7471-1996
Test Standard: JIS 7400-1996
Tekanan Uji Hidrolik: Badan-2.1Mpa, Kursi-1.54Mpa
Ukuran flange miturut JIS B2220 -10K
Bahan utama:
1-Body: Baja Tuang (SC480)
2 Kursi: Perunggu (BC6) utawa Stainless Steel (2Cr13, SCS2)
3-Disc: Perunggu (BC6) utawa Stainless Steel (2Cr13, SCS2)
4-Stem: C3771BD (Kuningan) utawa SUS403
5-Bonet: Cast Steel (SC480)
6-Roda Tangan: Cast Iron (FC200)
7-Packing Gland: Perunggu (BC6) utawa Stainless Steel (2Cr13)
8-Gasket: non-asbes
Daftar Ukuran Utama (mm):
| Kode IMPA |
Ukuran |
L1 |
D
|
C
|
Ora ana bolongan bolt |
h
|
t
|
H
|
D2 |
Bobot |
|
751141
|
50
|
120
|
155
|
120
|
4
|
19
|
20
|
255/255 |
160
|
18.2
|
|
751142
|
65
|
130
|
175
|
140
|
4
|
19
|
22
|
270/260 |
200
|
25.3
|
|
751143
|
80
|
140
|
185
|
150
|
8
|
19
|
22
|
275/270 |
200
|
27.5
|
|
751144
|
100
|
160
|
210
|
175
|
8
|
19
|
24
|
315/305 |
250
|
40.6
|
|
751145
|
125
|
180
|
250
|
210
|
8
|
23
|
24
|
360/350 |
280
|
69.8
|
|
751146
|
150
|
205
|
280
|
240
|
8
|
23
|
26
|
405/390 |
315
|
81.2
|
|
751147
|
200
|
230
|
330
|
290
|
12
|
23
|
26
|
475/450 |
355
|
124
|
|
751148
|
250
|
290
|
400
|
355
|
12
|
25
|
30
|
570
|
450
|
211
|
|
751149
|
300
|
320
|
445
|
400
|
16
|
25
|
32
|
645
|
500
|
293
|
Marine Cast Iron Meneng mudhun Priksa Angle Valve JIS F7376 10K
Kategori:JIS Marine Angle Valve
Bahan: Besi
Standar: JIS F7376
Sertifikat: CCS, BV, ABS, GL, LR, DNV, NK, RINA, KR, IRS
Rega Fob: Entuk Rega Paling Anyar Saiki
Panggonan Asal: China
