Crane marineOffshore crane dirancang utamané kanggo platform lenga, platform sumber prau, tongkang etc. Adhedhasar pertimbangan desain API-2C, crane lepas pantai bisa ing kondisi apa inboard angkat, outboard angkat lan angkat personel.
Crane laut

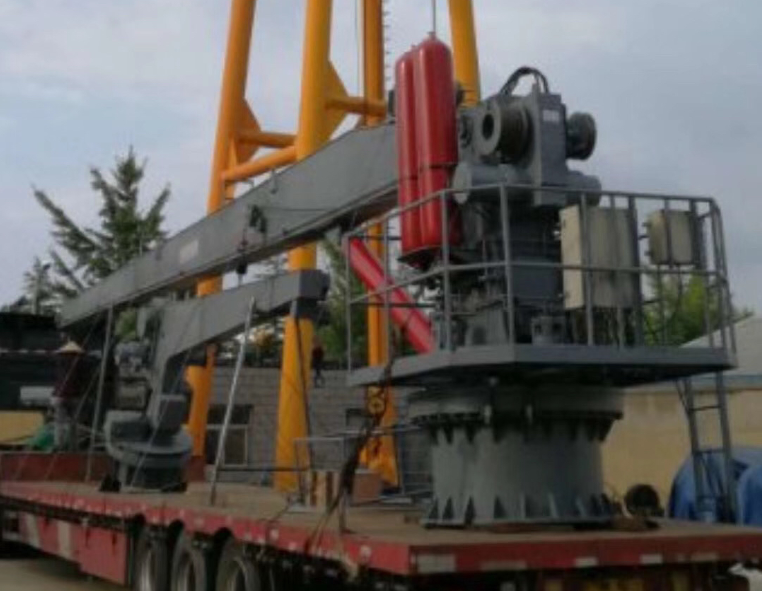

Crane marine dirancang khusus kanggo platform minyak, prau sumber platform, tongkang lan sapiturute. Adhedhasar pertimbangan desain API-2C, crane laut bisa digunakake ing lift inboard, angkat outboard lan angkat personel.
Crane bisa dilengkapi karo:
Sistem AC Kab
Lampu proyeksi lengan suspensi
Beacon Obstruction Pesawat lan Lampu Proyeksi Lengan Suspensi
Anti-bledosan
Sistem tegangan konstan
Electromotor utawa diesel drive
Fungsi tampilan layar tutul
Fungsi pilihan negara segara
Fungsi wong digantung
Sertifikat saka CCS, DNV, ABS, GL, LR, BV, RINA, NK, KR lan masyarakat klasifikasi liyane
Spesifikasi utama:
|
Model |
Beban angkat lepas pantai×radius(t×m) |
Beban pengangkat onboard×radius(t×m) |
Beban angkat × kacepetan (t × m.min) |
Beban whip×radius(t×m/min) |
Wektu Luffing |
Kacepetan slewing (m/min) |
Daya penggerak (kw) |
|
HO5-15P |
5×15 |
5×15 |
5×30 |
- |
CL: 70 |
0.8 |
75 |
|
HO15-10(8.5-18)P |
15×10 8.5×18 |
15×10 8.5×18
|
15×20 |
3×20×30 |
CL: 130 |
1 |
160 |
|
HO25-35P |
25×35 |
25×35 |
25×20 |
- |
CL: 130 |
0.5 |
315 |
|
HO15-15P |
15×15 |
15×15 |
15×18 3×26 |
- |
RL: 100 |
1.5 |
110 |
|
HO16-25P |
16×25 |
16×25 |
16×18 |
- |
RL: 100 |
1 |
200 |
|
HO20-16(5-30.5)P |
20×16 5×30.5 |
20×22 7.5×30.5
|
20×10 1×13 |
5×32×30 |
RL:160 |
1 |
224 |
|
HO30-12(11-30.5) |
30×12 11×30.5 |
30×17 15.5×30.5
|
30×30 |
5×32×70 |
RL:130 |
1 |
315 |
|
HO20-16(5-30.5)P |
20×16 5×30.5 |
20×22 7.5×30.5
|
20×10 1×13 |
5×32×30 |
RL:160 |
1 |
224 |
|
HO30-12(11-30.5)P |
30×12 11×33.5 |
30×17 15.5×33.5
|
30×30 |
5×32×70 |
RL:130 |
1 |
315 |
|
HO40-102(11-36.5)P |
40×10 11×36.5 |
40×14 15.5×36.5
|
40×30 |
5×38×70 |
RL:130 |
0.8 |
400 |
|
HO50-15(15-33.5)P |
50×15 15×33.5 |
50×15 15×33.5
|
50×18 |
10×36×60 |
RL:130 |
0.8 |
350 |
|
HO70-15(30-45)P |
70×15 30×45 |
70×21 40×45
|
70×18 |
20×48×67 |
RL:180 |
0.85 |
650 |
|
HO80-10(12-45)P |
80×10/12×45(n=4) 40×23/14×45(n=2) |
80×10/12×45(n=4) 40×23/14×45(n=2)
|
80×9(n=4) 40×18(n=2) |
5×47,5×90 |
RL: 150 |
0.6 |
336 |
|
Cathetan: 1. Tegangan nyopir: 380V / 50Hz ac / 3 Ph utawa 440V / 60Hz ac / 3 Ph utawa mesin diesel. 2. Tabel parameter mung kanggo referensi, spesifikasi syarat pangguna bisa dirancang. 3. RL-tali baja luffing, CL-silinder lenga luffing. |
Model nerangake: HO5-15P 1. HO-Hydraulic Offshore Crane 2. 5-SWL 3.15-Maks. radius kerja 4. P-Offshore alas crane |
||||||
